Float Switch Marine Bilge Pump 12v Water Level Float Switch For Bilge Pump

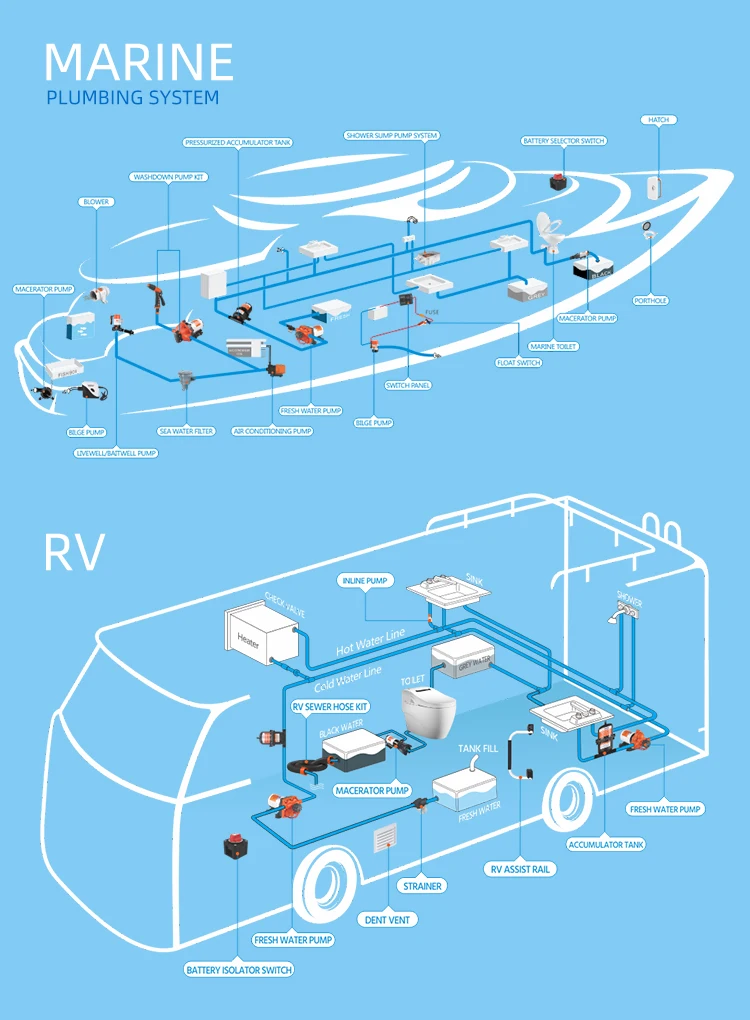

Application
Product Overview

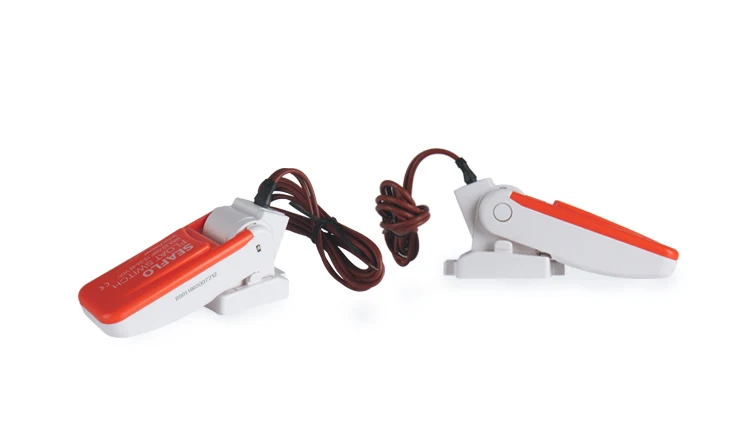

01 Series Bilge Pump Float Switch
12-24-32-VDC Boat Bilge Pump Float Switches are the Switch of choice for selective boaters all over the world. Featuring quality design and construction to offer reliable engagement of your bilge pump. For pumps drawing up to 20 amps. float switches are designed for use with fresh water and salt water only.

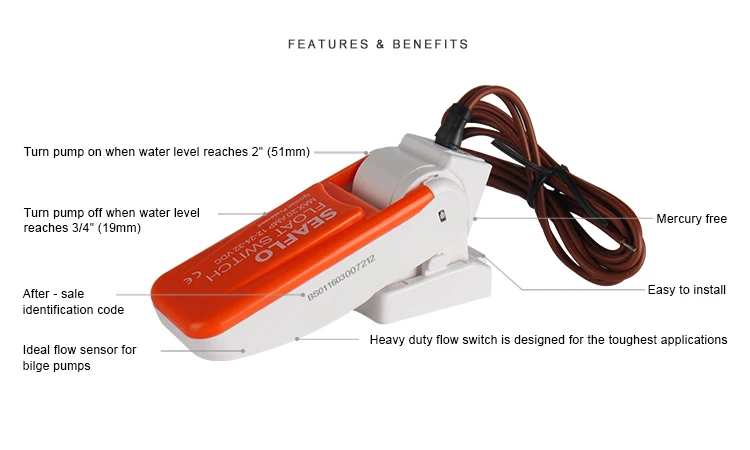

MORE FEATURES & BENEFITS
|
- Ideal flow sensor for bilge pump.
|
||||
|
- 20A max.
|
||||
|
- Suitable for use with 12v DC, 24v and 32v DC bilge pumps.
|
||||
|
- Heavy duty flow switch is designed for the toughest applications.
|
||||
|
- Turns pumps on when water level reached 2.0’’(51mm).
|
DIMENSIONS
PRODUCT SPECIFICATIONS
|
Model
|
Max Amps 12Volts
|
Max Amps 24Volts
|
Wire Lead
|
Wire Gauge Size
|
|
SFBS-20-01
|
20 A
|
10 A
|
1 m
|
18AWG
|
