Mirror Polished 3KG-80KG Boat Anchor AISI316 Stainless Steel Anchor Delta Anchor Marine Hardware Accessories

Mirror Polished 3KG-80KG Boat Anchor AISI316 Stainless Steel Anchor Delta Anchor Marine Hardware Accessories

  • $2,999.99
    Unit price per
  • Save $1,000
Shipping calculated at checkout.

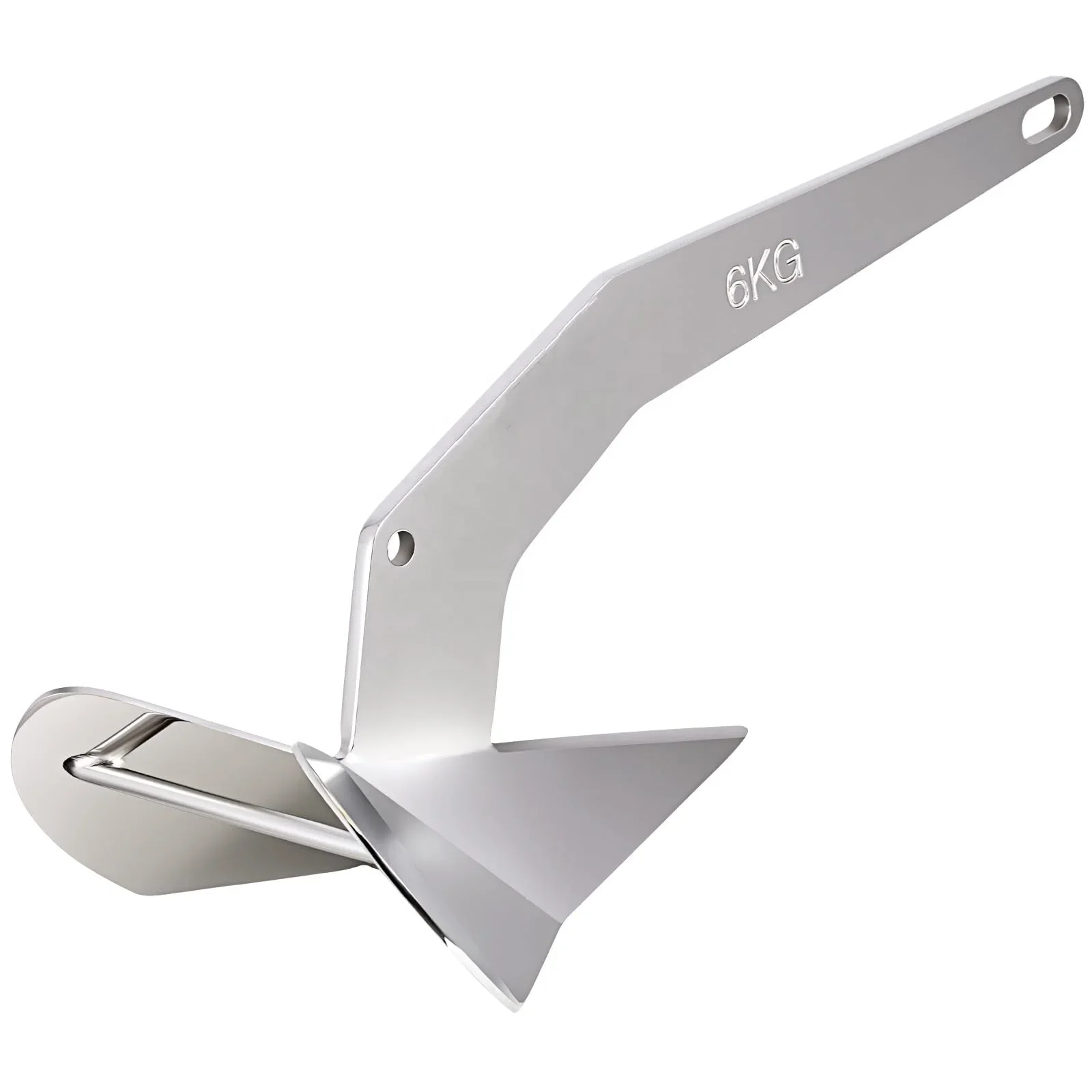

The Delta/Wing boat anchor (modeled after the original Delta boat anchors) is one of the most popular styles of anchor design for thousands of boaters. It fits neatly most anchor rollers, coming with a mirror polishing finish, perfect choice for boating needs. Cast from one-piece solid stainless steel gives the Delta anchor maximum tensile strength, perfect superior holding power than other similar plow anchors like the CQR anchor. Its unique shank profile and ballasted tip will give you a perfect self-launching anchoring experience, every time. The low center of gravity and self-righting geometry ensure that the Delta anchor will set easily and immediately in a wide range of seabeds, like mud, sand, rock and more.


Consistent and reliable in performance, it’s the perfect choice of the standard equipped anchor for most boat builders.


Product Features:

Easy & Immediately setting in a wide range of bottoms with high holding power.

Constructed of heat-treated high-tensile stainless steel for incredible strength.

Unique shank profile design to be more effective in a variety of seabeds.

Self-launching design for perfect operation with anchor windlass.

Modeled after the original Delta Design anchor.

Keep stable when tide and wind conditions change.


Having a high holding power to weight ratio, boaters often need a lighter Wing/Delta anchor than may be necessary in other styles of anchors. For example, for most 25’ boats, a 13 lbs Wing/Delta anchor will be an adequate anchor choice.

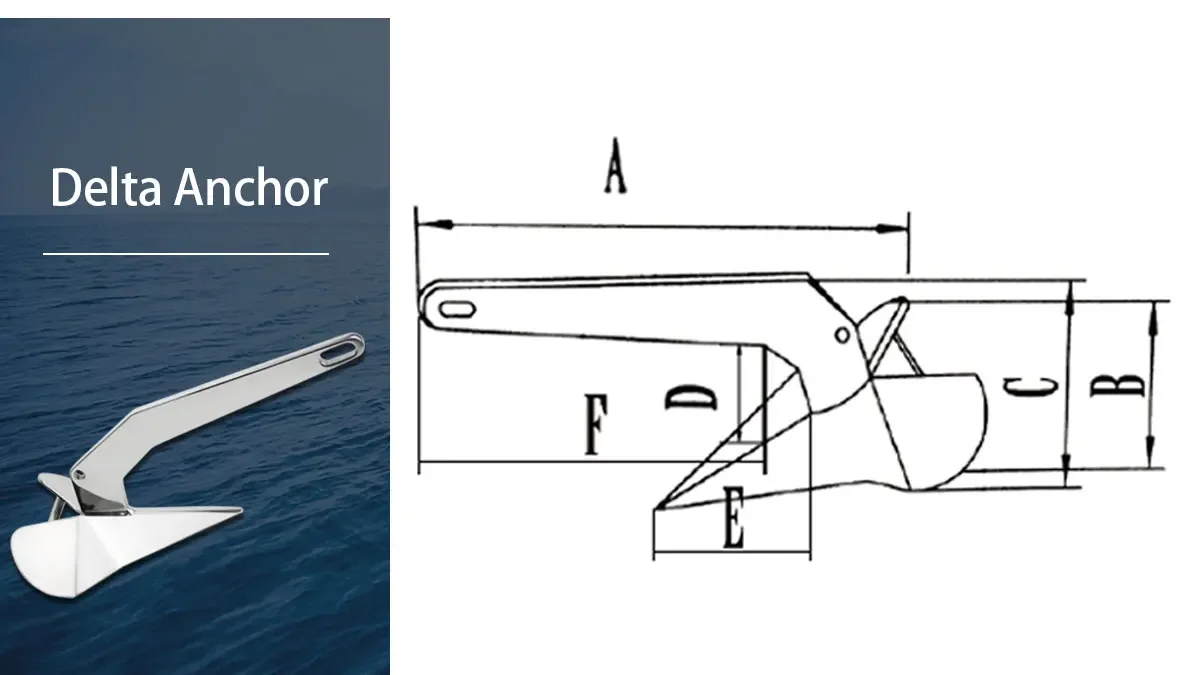

Code
Size
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
F(mm)
SH001-004-0030
3KG
440
200
180
110
130
310
SH001-004-0040
4KG
518
220
195
120
145
310
SH001-004-0050
5KG
580
260
240
145
150
410
SH001-004-0060
6KG
580
260
240
145
150
410
SH001-004-0070
7KG
580
260
240
145
150
410
SH001-004-0075
7.5KG
610
270
285
150
200
440
SH001-004-0080
8KG
655
277
285
150
196
470
SH001-004-0100
10KG
680
280
296
160
210
480
SH001-004-0150
15KG
810
340
315
190
255
440
SH001-004-0200
20KG
840
365
339
200
270
465
SH001-004-0250
25KG
950
395
433
230
295
600
SH001-004-0300
30KG
1035
420
460
250
315
650
SH001-004-0400
40KG
1115
460
510
270
335
680
SH001-004-0500
50KG
1200
487
540
290
370
720
SH001-004-0600
60KG
1270
595
515
270
390
750
SH001-004-0800
80KG
1470
660
590
310
470
770
