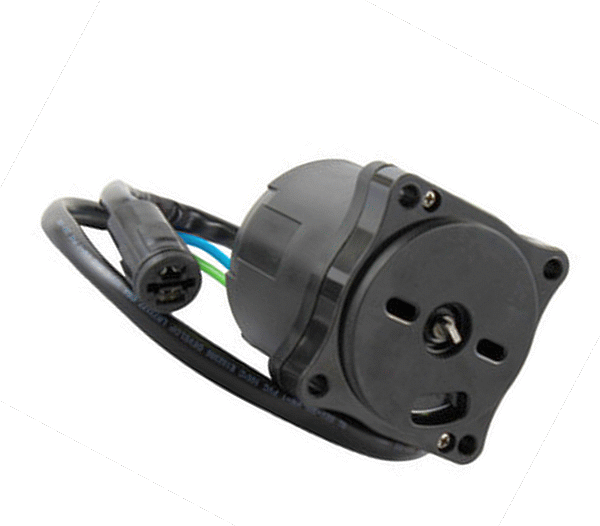

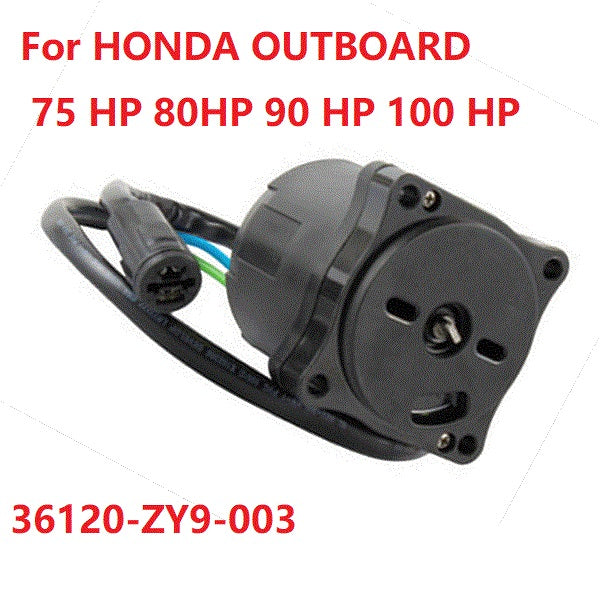

POWER TRIM & TILT Motor 36120-ZY3-013 12V For Honda Outboard 75HP-100HP 36120-ZY3-023

  • $149.99
    Unit price per
Shipping calculated at checkout.


Replaces Part Numbers & Specifications

For HONDA: 36120-ZY3-013;36120ZY3013 ;36120-ZY9-013

REPLACES: TRM0104 6234


ITEM DESCRIPTION: TILT TRIM STARTER MOTOR

VOLTAGE: 12VDC
ROTATION: REVERSIBLE
LENGTH: 4.429IN / 112.5MM
HOUSING OD: 3.091IN / 78.5MM
SHAFT OD: 0.315IN / 8MM
SHAFT SPECIFICATIONS: 2.3MM KEYED
CURRENT TYPE: DC
SPECIFICATIONS: 2 WIRE
SPECIFICATIONS: 39" CORD LENGTH
WEIGHT: 3.01 LBS / 1.37 KG

This Honda 36120-ZY9-013 POWER TILT MOTOR fits the following models and components:

Honda Outboard 75HP BF75DK4 LRTA VIN# BBAJ-1300001 to BBAJ-1399999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK2 XRTA VIN# BBCJ-1100001 to BBCJ-1199999 POWER TRIM & TILT

Honda Outboard 100HP BF100AK1 LRTA VIN# BBMJ-1100001 to BBMJ-1199999 POWER TRIM & TILT

Honda Outboard 100HP BF100AK1 XRTA VIN# BBMJ-1100001 to BBMJ-1199999 POWER TRIM & TILT

Honda Outboard 75HP BF75DK2 LRTA VIN# BBAJ-1100001 to BBAJ-1199999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK5 JRTA VIN# BBCJ-1400001 to BBCJ-1499999 POWER TRIM & TILT

Honda Outboard 100HP BF100A LRTA VIN# BBMJ-1000001 to BBMJ-1099999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK4 LRTA VIN# BBCJ-1300001 to BBCJ-1399999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK4 XRTA VIN# BBCJ-1300001 to BBCJ-1399999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK4 JRTA VIN# BBCJ-1300001 to BBCJ-1399999 POWER TRIM & TILT

Honda Outboard 100HP BF100A XRTA VIN# BBMJ-1000001 to BBMJ-1099999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK5 LRTA VIN# BBCJ-1400001 to BBCJ-1499999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK0 XRTA VIN# BBCJ-1000001 to BBCJ-1099999 POWER TRIM & TILT

Honda Outboard 75HP BF75DK0 LRTA VIN# BBAJ-1000001 to BBAJ-1099999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK0 LRTA VIN# BBCJ-1000001 to BBCJ-1099999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK0 LHTA VIN# BBCJ-1000001 to BBCJ-1099999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK5 XRTA VIN# BBCJ-1400001 to BBCJ-1499999 POWER TRIM & TILT

Honda Outboard 90HP BF90DK2 LRTA VIN# BBCJ-1100001 to BBCJ-1199999 POWER TRIM & TILT

Honda Outboard 75HP BF75DK0 LHTA VIN# BBAJ-1000001 to BBAJ-1099999 POWER TRIM & TILT

Honda Outboard 75HP BF75DK3 LRTA VIN# BBAJ-1200001 to BBAJ-1299999 POWER TRIM & TILT
