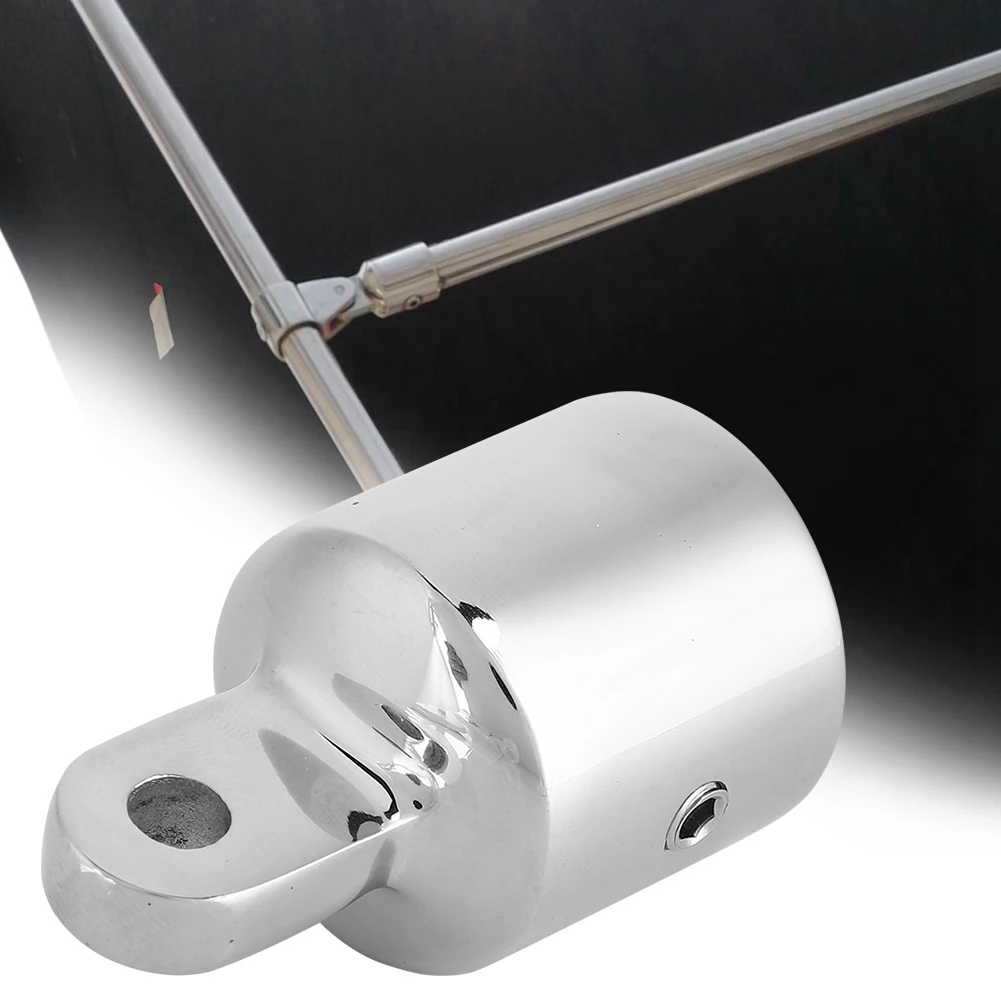

4 Pcs 22mm/25mm or 7/8''/1'' Bimini Top Eye End Cap Stainless Steel 316 Boat Bimini Top Hardware Fitting External Eye End Canopy

Package Includes:

4 pieces of Bimini top cap fitting,
1 piece of L Shape Hex Key.
(Please select the correct size).

Product Introduction

- Corrosion resistance, solid, withstand harsh weather conditions;
- Heavy duty 316 stainless steel for marine & industrial applications;
- Perfect replacement parts for worn-out, plastic, nylon fittings;

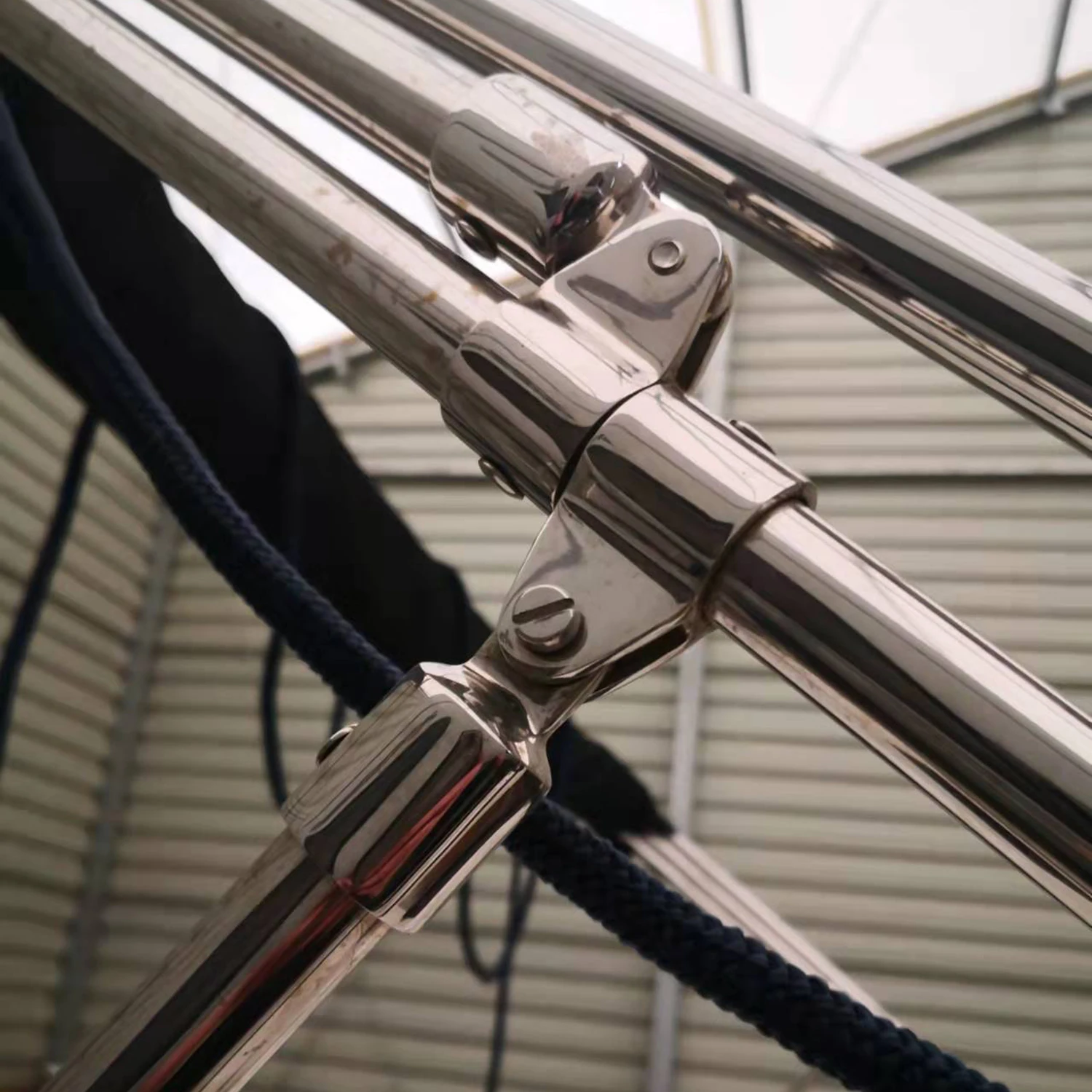

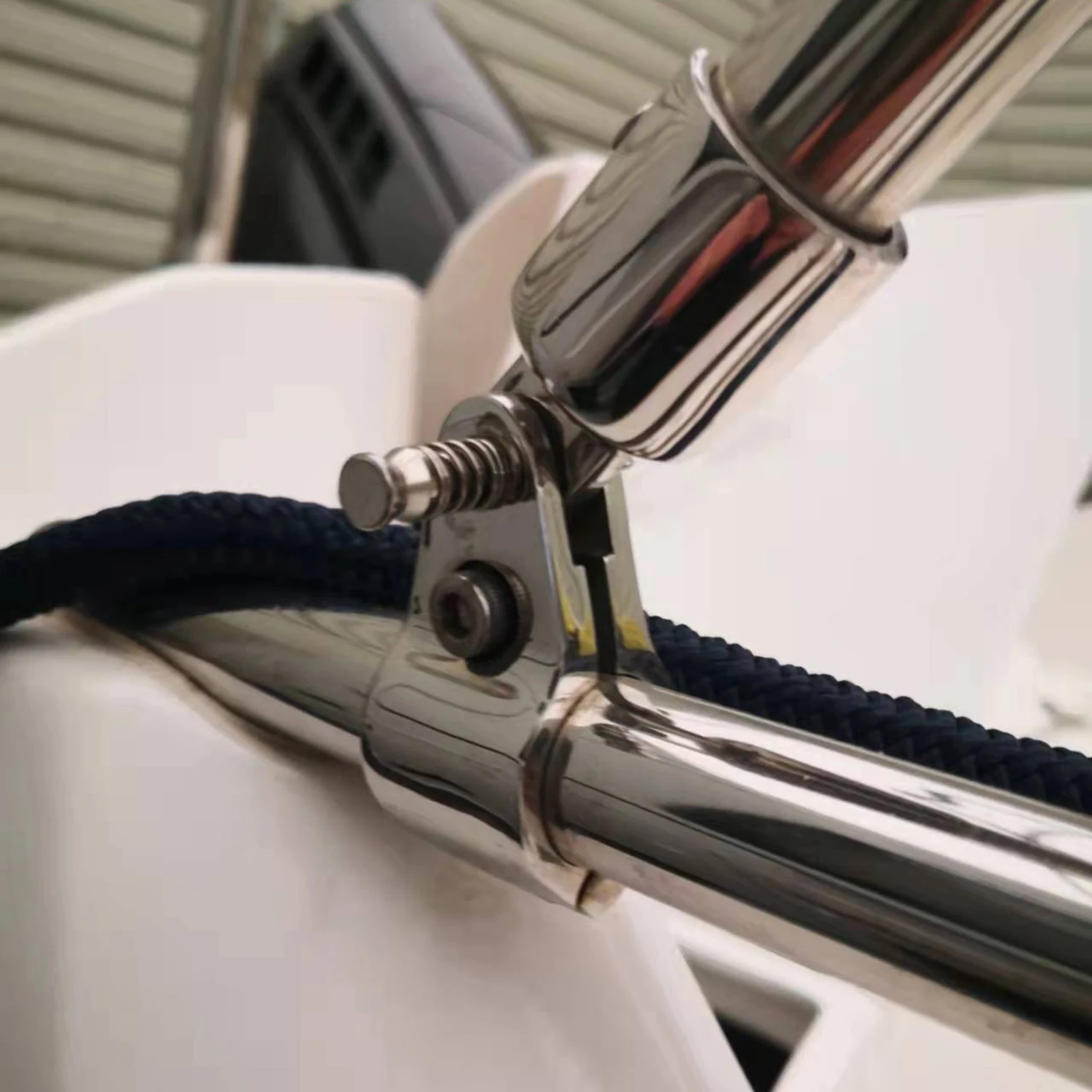

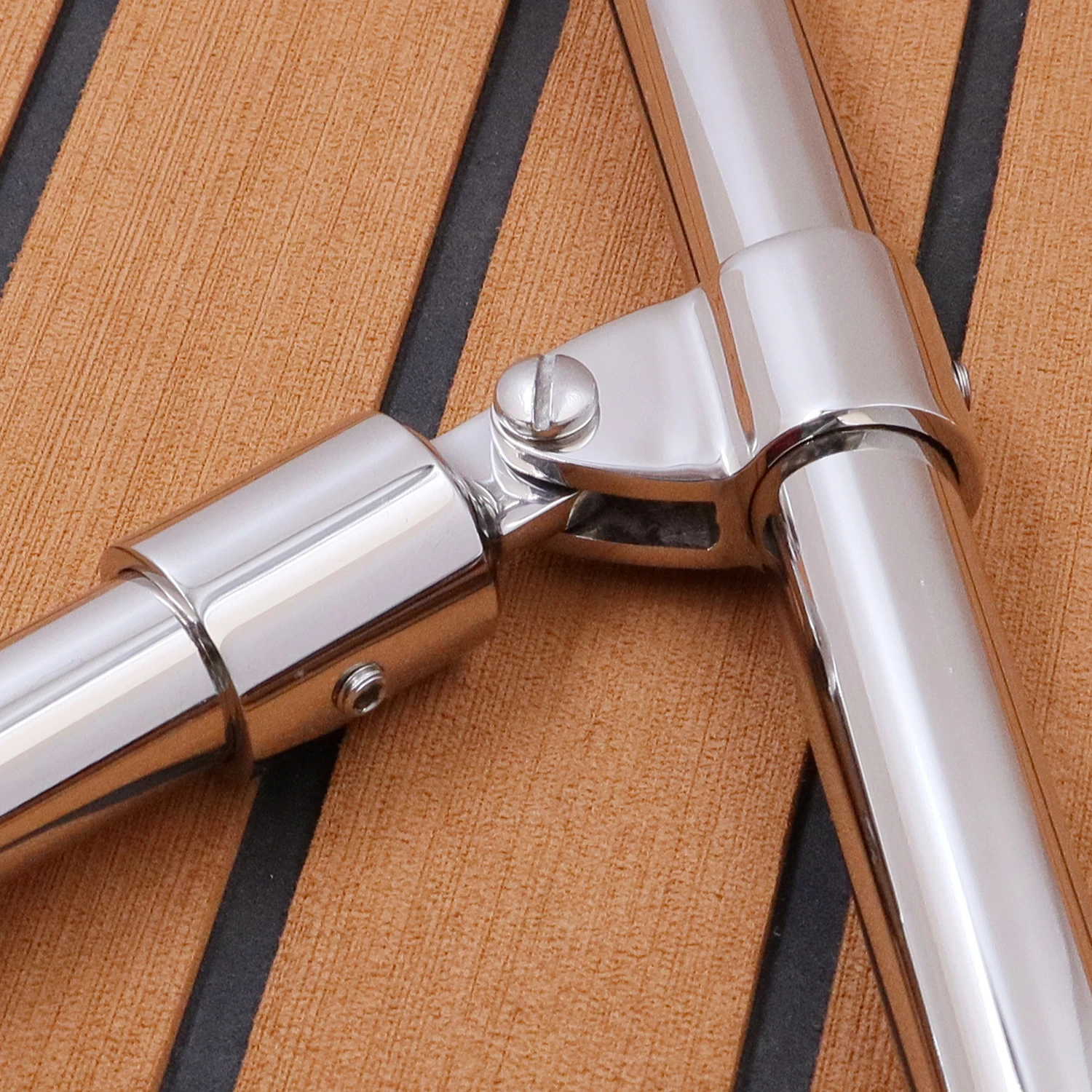

- Work with jaw slide to join the bimini top frame;
- Easy to assemble and install;

22mm (7/8 inch)

Internal Diameter: 22.8mm (7/8 in),fit for most 7/8'' O.D round tubing
Outside Diameter: 28mm (1.1 in);
Thickness: 3.1mm ;
Height: 55mm (2.17 in);
Mounts: 1/4'' bolt holes;

25 mm (1 inch )

Internal Diameter: 25.8mm (1 in),fit for most 1'' O.D round tubing
Outside Diameter: 32mm (1.25 in);
Thickness: 3.1mm ;
Height: 58mm (2.3 in);
Mounts: 1/4'' bolt holes;

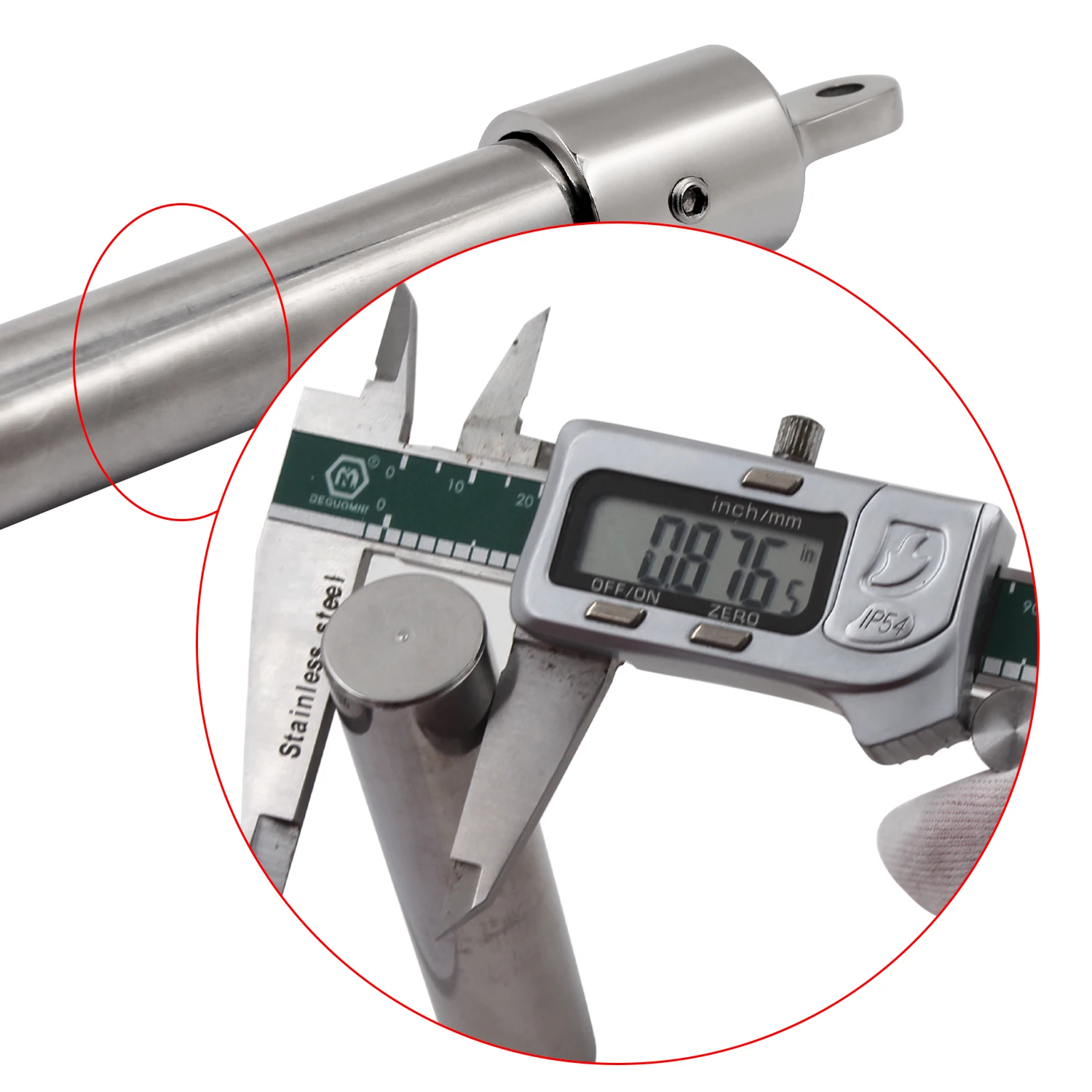

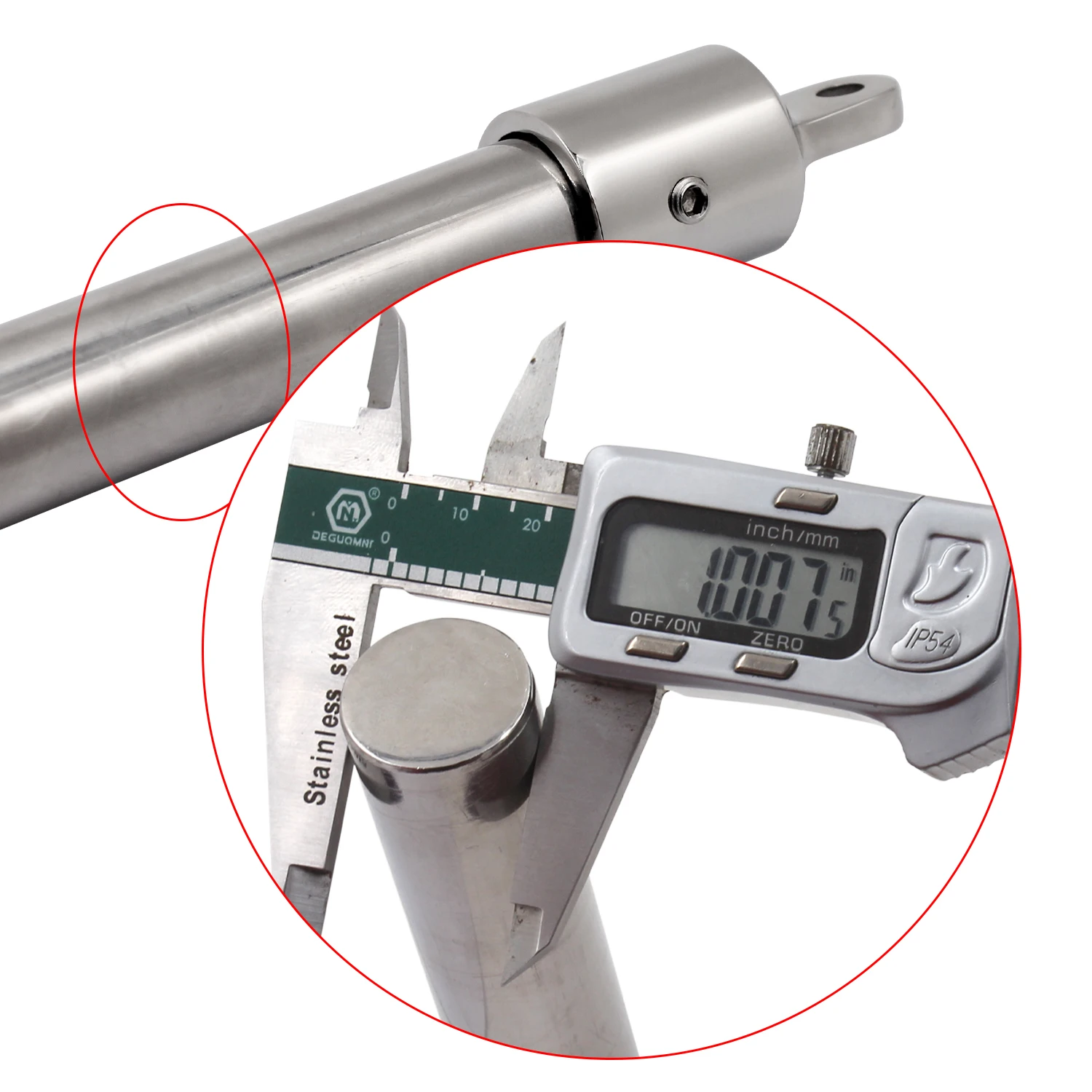

Product Inspection

Boat bimini top cap eye end,This product is suitable for 7/8 inch or 1 inch tube, We use the international standard 7/8 inch or 1 inch tube for dimensional inspection to ensure that each product can be installed normally.

Package Includes:

4 pieces of Bimini top cap fitting,
1 piece of L Shape Hex Key.
(Please select the correct size).
