Boat Bimini Top Jaw Slide Fitting Hardware Marine 316 Stainless Steel Rail Mount Clamps for 22mm/25mm/32mm

Package Includes:

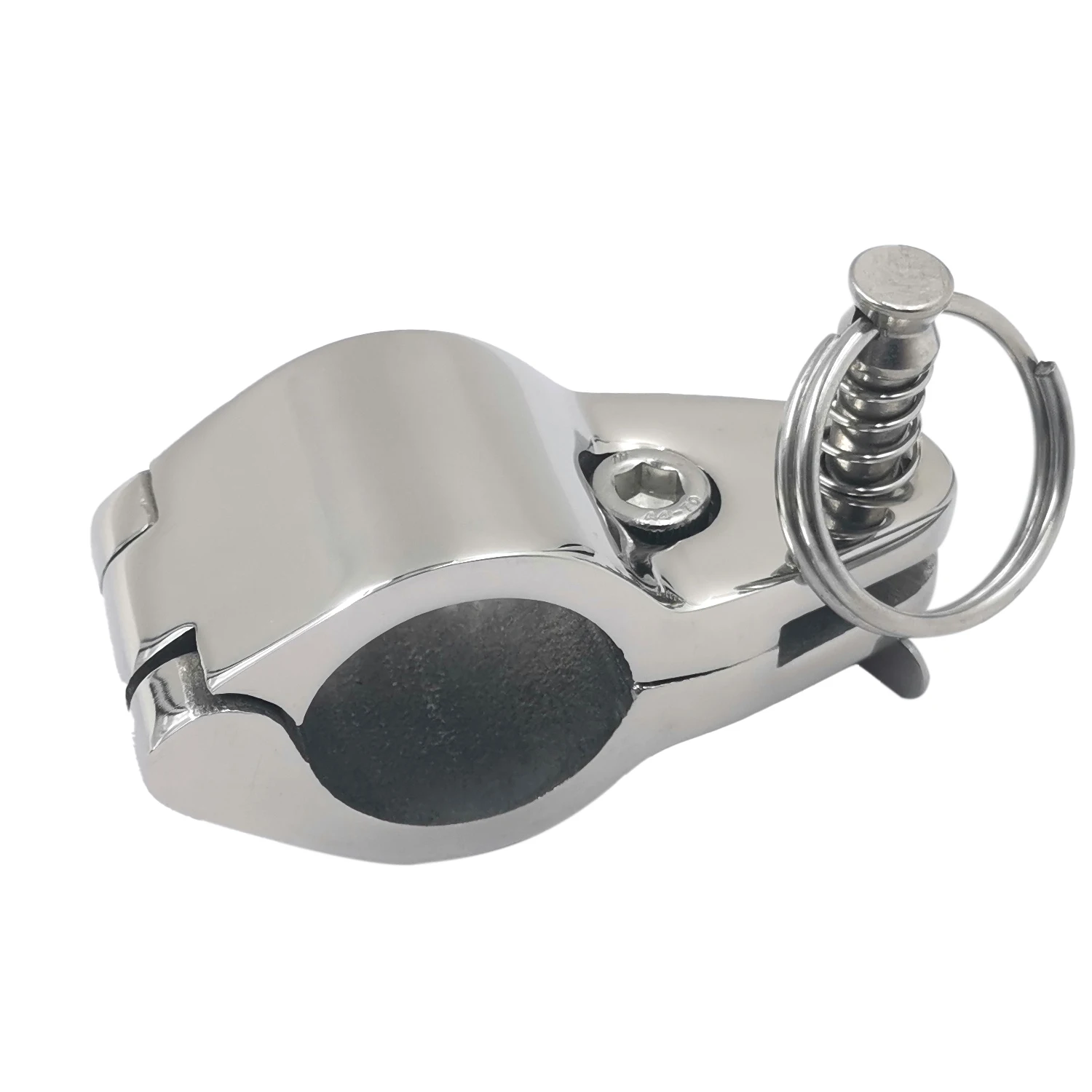

2 pieces of Boat Bimini Top Fitting Hinged Jaw Slide with Quick Release Boat Pin

(Please select the correct size).

Product Introduction

- Corrosion resistance, solid, withstand harsh weather conditions;
- Heavy duty 316 stainless steel for marine & industrial applications;
- Perfect replacement parts for worn-out, plastic, nylon fittings;

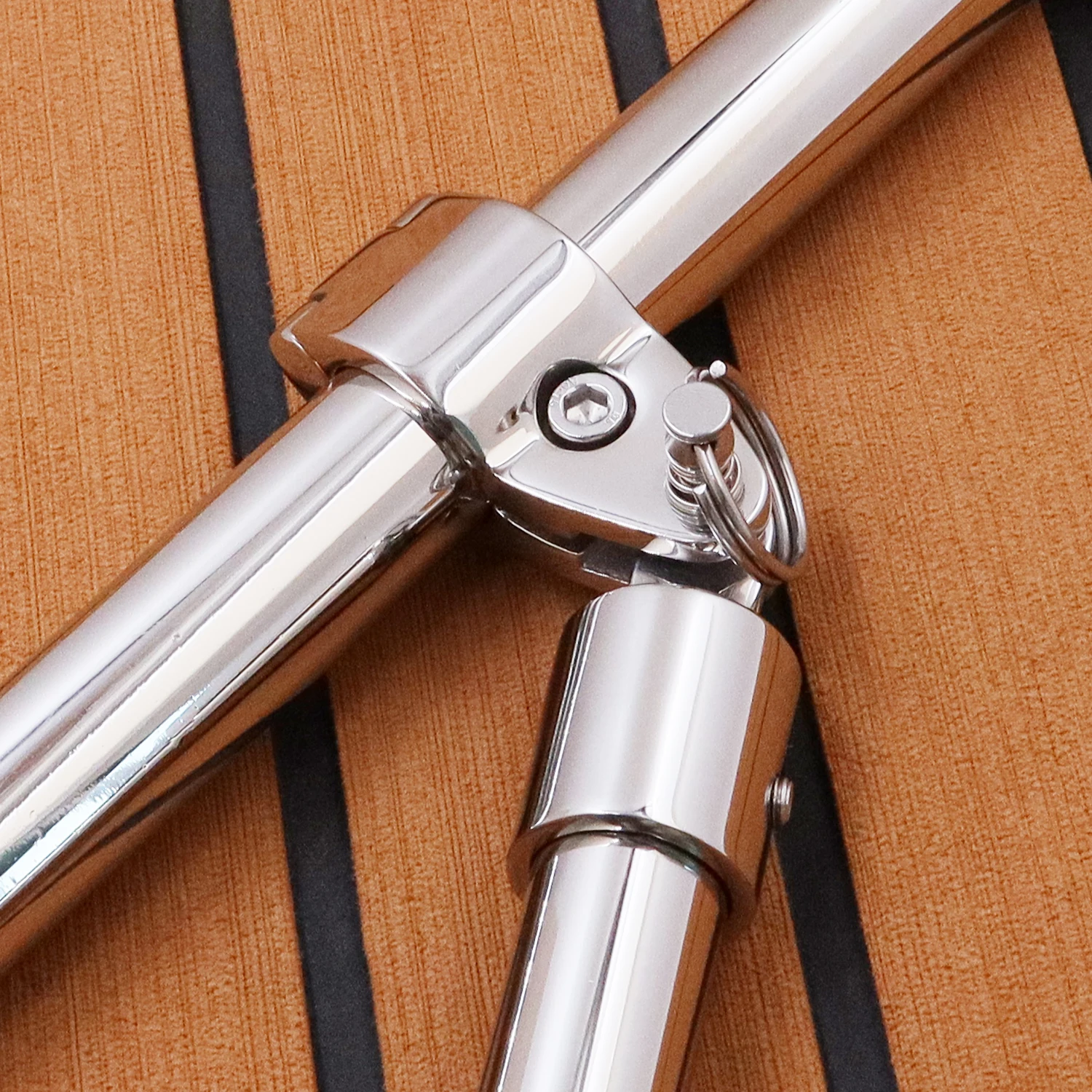

- Work with jaw slide to join the bimini top frame;
- Easy to assemble and install;

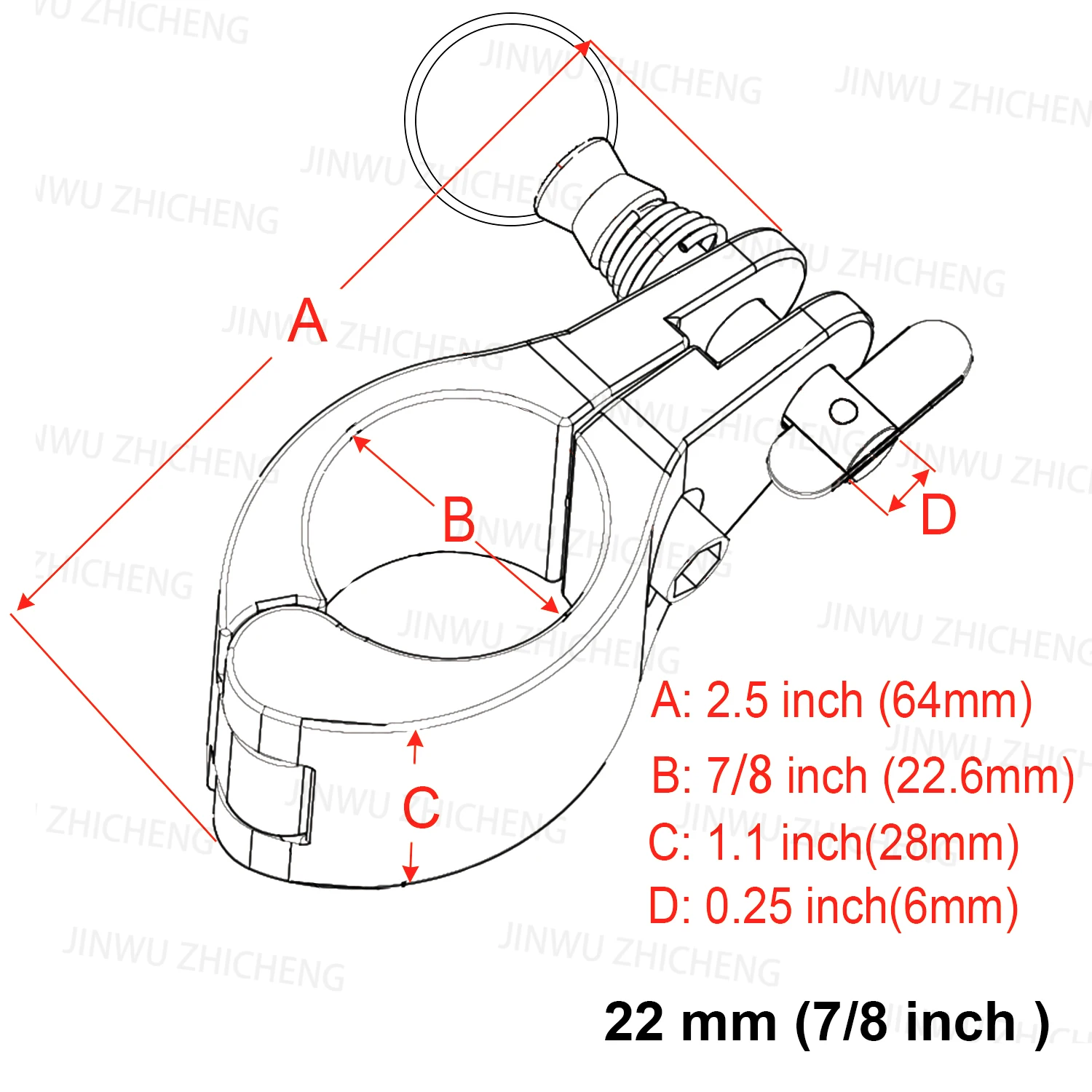

22mm (7/8 inch)

Bimini top jaw slide fit for 7/8 inch(22.8mm) diameter round tubing. This jaw slide could be opened enough to snap over the 7/8" railing without removing and sliding on from the end.

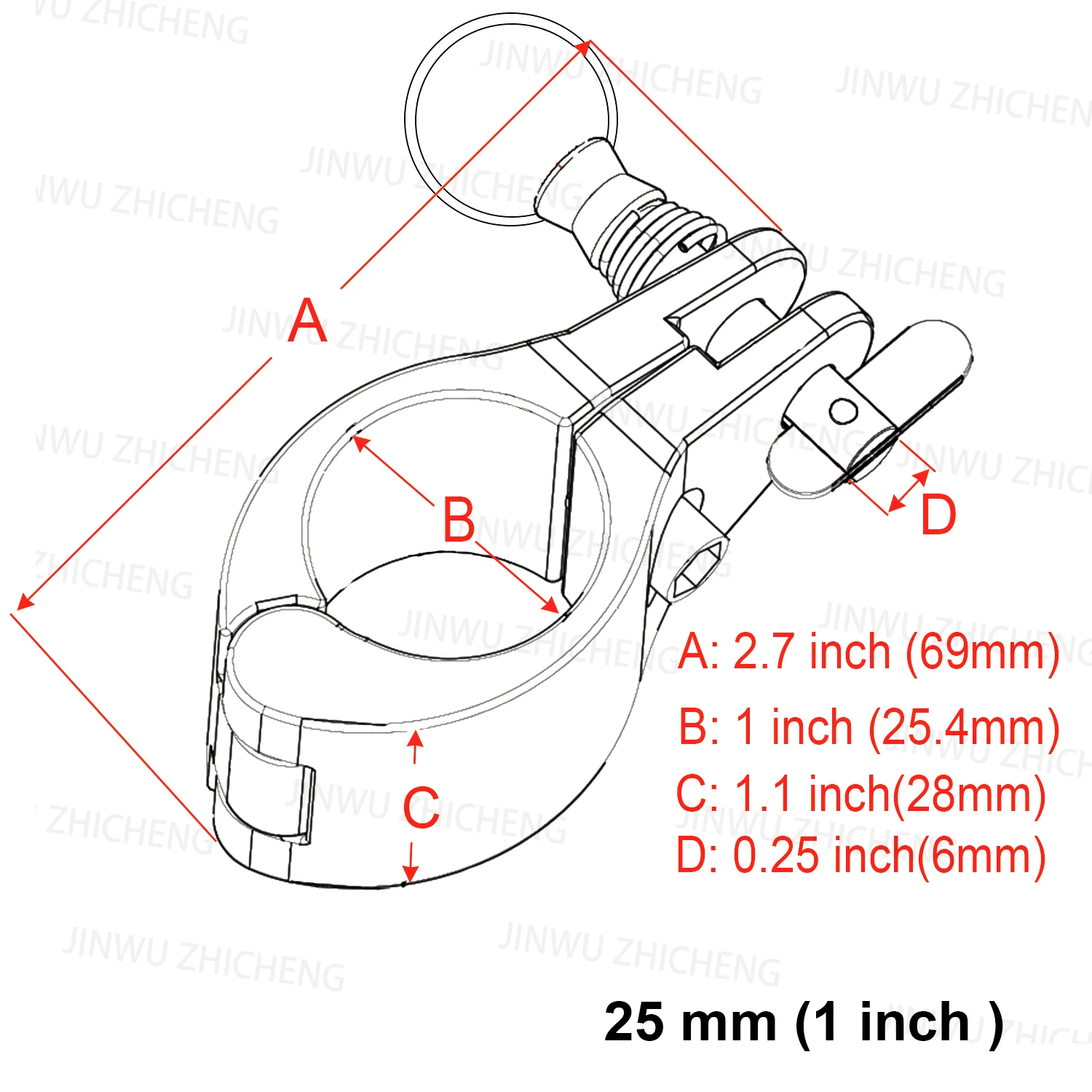

25 mm (1 inch )

Bimini top jaw slide fit for 1 inch(25.4mm) diameter round tubing. This jaw slide could be opened enough to snap over the 1" railing without removing and sliding on from the end.

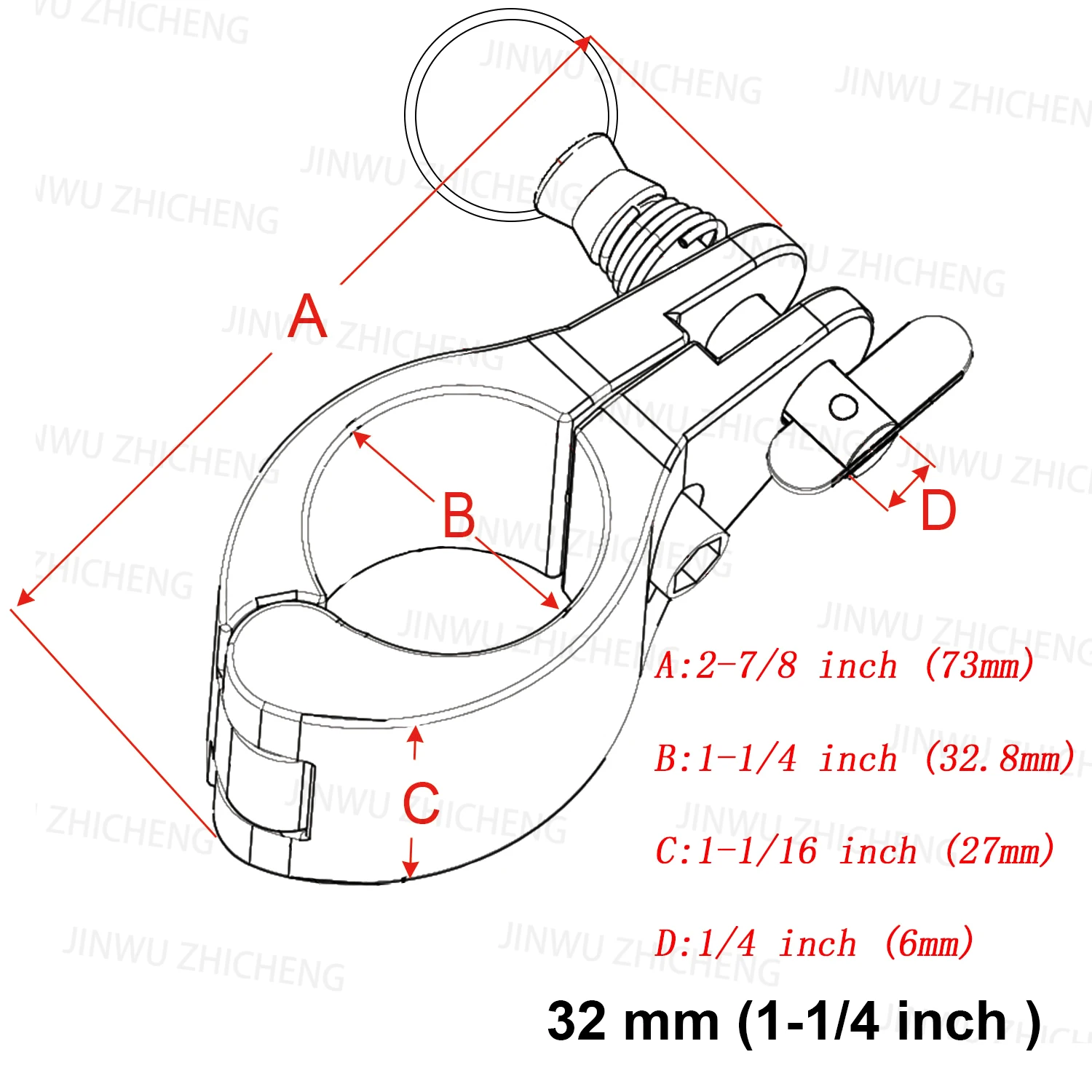

32 mm (1-1/4 inch )

Bimini top jaw slide fit for 1-1/4 inch(32.8mm) diameter round tubing. This jaw slide could be opened enough to snap over the 1-1/4 " railing without removing and sliding on from the end.

Product Inspection

Boat bimini top cap eye end,This product is suitable for 7/8 inch or 1 inch ,1-1/4 inch tube, We use the international standard 7/8 inch or 1 inch ,1-1/4 inch tube for dimensional inspection to ensure that each product can be installed normally.

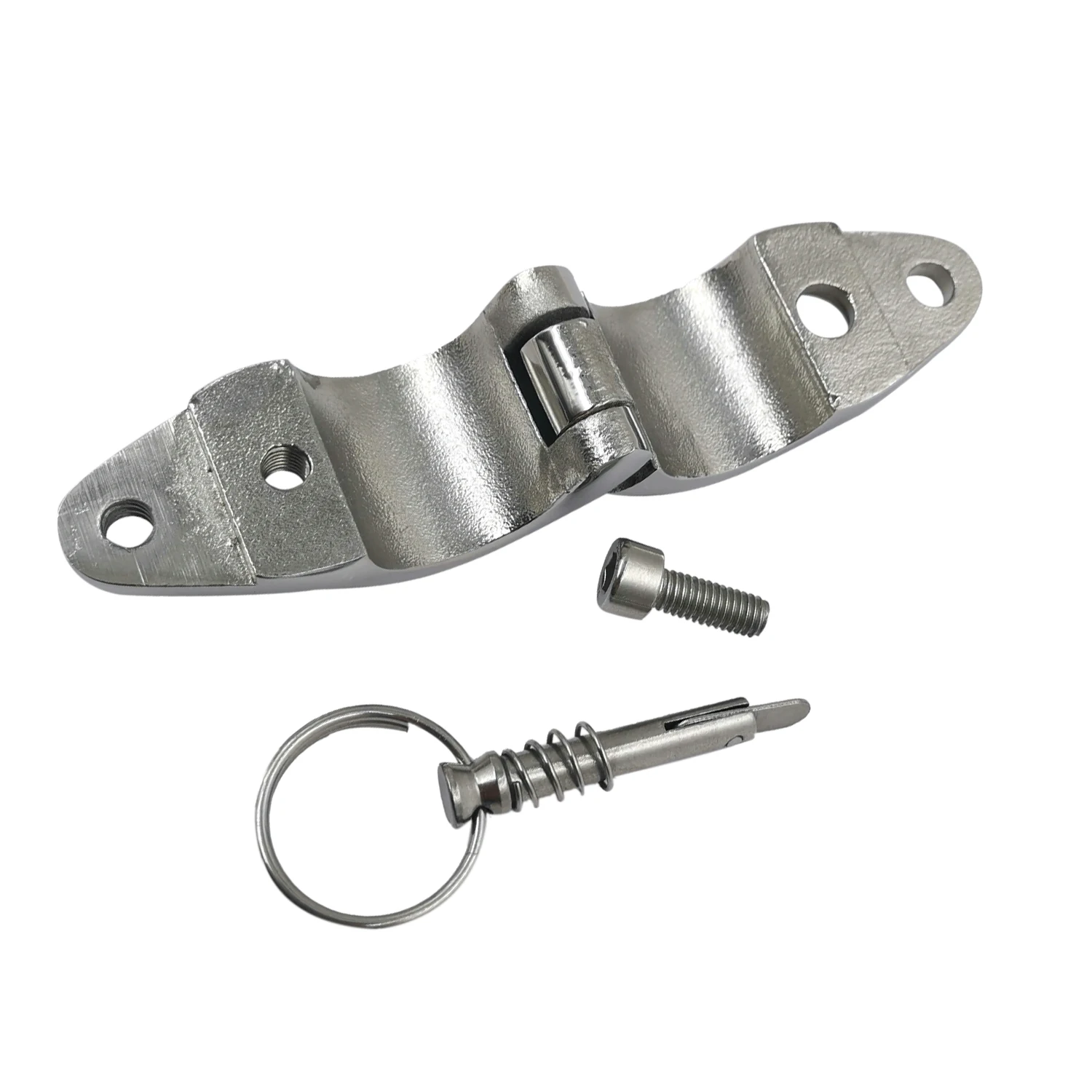

Marine boat bimini top fittings are easy to assemble and install. Bimini top caps eye end,There are two standard 6 mm stainless steel 316 screws on the side of the product, which can better fix the pipe.

Package Includes:

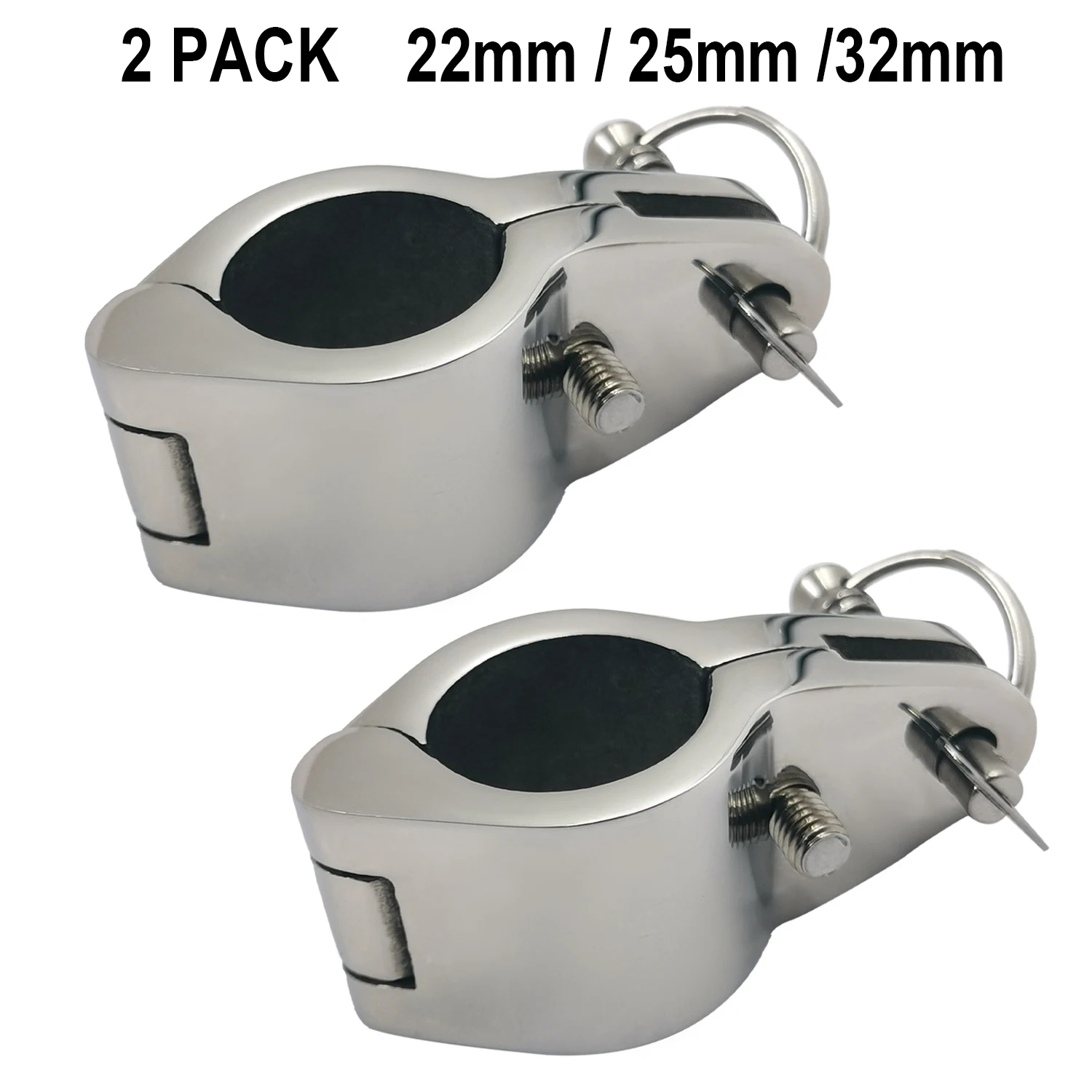

2 pieces of Boat Bimini Top Fitting Hinged Jaw Slide with Quick Release Boat Pin

(Please select the correct size).
