Hydraulic Steering Cylinder System Front Mount For Outboard Yatch From 90HP to 150HP Universal model

Hydraulic Steering Cylinder System Front Mount For Outboard Yatch From 90HP to 150HP Universal model

  • Save $99.91
Shipping calculated at checkout.


Features & Details
【VOLUME: 117CC; OUTPUT FORCE: 410KGF】- Its volume is 117cc, and Tube I.D: 32mm Rod I.D: 16mm, Output Force: 410kgf, Strode : 197.3mm.
【ADVANCED CRUSH RESISTANCE】- State of the sealing system offers superior resistance to repeated compression set and is designed to better withstand the harsh environment.
【BUILT-IN TWO-WAY LOCK】- The cylinder is eqiupped with a built-in two-way locking valve which eliminates rebound torque during torsion.
【TWO EXTRA TUBES】- Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing, we put two extra tubes for easy installation and replacement.
【WIDE APPLICATION】- Suitable for ships under 150 horsepower, outboard-powered boats like centre console, offshore fishing, bass boats, flats boats and many more.

Key Features

Anti-ageing, corrosion-resistant.
Anti-slip wave design delivers operation
more comfortable operation.

With a shaft seal you can easily
replace, and the helm pump is a user
friendly design.

High-strength nylon hose with quick-fit
1/4pipe can fit for easy installation and
multiple-uses.

The state of the sealing system offers
superior resistance to repeated
compression sets

The hydraulic pump has a compact
internal structure and a stylish exterior.
Fits boatsrated to amaximum of 150HP.

Its volume is 117cc, and Tube I.D: 32mm
Rod I.D: 16mm, Output Force: 410kgf,
Strode: 197.3mm.


90-150HP Boat Hydraulic
Steering Cylinder

The steering kit, including a cable, a pump,
a cylinder, and a steering wheel, is
ideal for skiffs, centre consoles, bass boats,
and runabouts. The balanced, compact
steering cylinder was developed to
fit these smaller splash wells.
This affordable system comes
with everything needed for easy installation.

  • Steering Wheel

  • Replaceable Shaft Seal

  • Compact & Neat

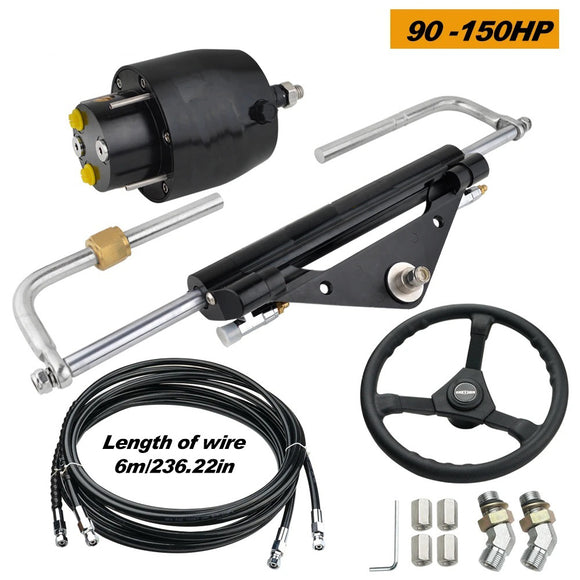

Package Content

  • 1 xHydraulic Pump

  • 2 xQuality Nylon Hose(6M)

  • 1 x Cylinder

  • 1 x Steering Wheel

  • 1 x Accessory Kit
